#007 3D Face Modeling – 3DMM model fitting in Python
Highlights: In this post, we will see how we can create a face model just from an input image using PyTorch. For this 3D model, we will obtain all the parameters which we can later play with. So, let’s begin with our post.
Data preparation
The first step for running the code is cloning the GitHub repository from Ascust, which has very well-explained instructions for running the code.
!git clone https://github.com/ascust/3DMM-Fitting-PytorchCode language: PHP (php)The next step is to download the Basel Face Model “01_MorphableModel.mat” and put it into “BFM” folder. This file can be found at: https://faces.dmi.unibas.ch/bfm/index.php?nav=1-2&id=downloads
We will also download the Expression Basis. To do that we will go to the repo, download the “CoarseData” and put “Exp_Pca.bin” into “BFM”. You can download the file from: https://github.com/Juyong/3DFace/blob/master/Exp_Pca.bin
Alternatively, we can run the code blocks below and download them from our public google drive links.
Moreover, we need to install gdown in order to download the files from google drive. We also need to install a pre-release version to be able to download big files. This can be achieved by adding the --pre after package name, as seen in the command below.
# Install gdown (for downloading files from google drive)
!pip install -U --no-cache-dir gdown --preCode language: PHP (php)!gdown --id 1fHhT2WC9ld5tClHJUpK9RASzwRy974pd # Generic face model
!gdown --id 19WlNpIeJ9quXMDk0FdFTuPelsTwkIF5e # Emotion expression fileCode language: PHP (php)# Unzip the file we just downloaded
!tar -xvf /content/BaselFaceModel.tgzCode language: PHP (php)Now that we have downloaded all the files, we need to place them in the corresponding folders. Inside the repository folder that we downloaded from GitHub, “3DMM-Fitting-Pytorch”, is a folder called “BFM” where we need to place two files that we downloaded: ’01_MorphableModel.mat’ (can be found in the folder “PublicMM1”) and ‘Exp_Pca.bin’.
We can achieve this by running the command below, which will copy the files into the folder.
!cp /content/PublicMM1/01_MorphableModel.mat /content/3DMM-Fitting-Pytorch/BFM/01_MorphableModel.mat
!cp /content/Exp_Pca.bin /content/3DMM-Fitting-Pytorch/BFM/Exp_Pca.binWe will move into the folder “3DMM-Fitting-Pytorch” and work inside of it.
%cd 3DMM-Fitting-PytorchWe have downloaded a Generic face model that is called Basel Face Model and also some generic expression coefficients Exp_Pca.bin. The model that we downloaded contains 53,490 vertices and the expression basis contains 53,215 vertices, while the model we are trying to generate consists of 35,709 vertices. So we need to select the corresponding vertices to get our face model. In order to select those vertices on the 3D model that are corresponding between the Basel Face Model and our face model, we will just run the command below. If you want more detail about how this is done, you can open the script convert_bfm09_data.py.
!python convert_bfm09_data.pyCode language: CSS (css)Dependency installation
In order to work with meshes and vertices in Python we will install PyTorch3D, which is a Python library. The installation is not straightforward on Windows, but with collab/Linux and CUDA, this is pretty easy.
PyTorch3D can be used for the following ilustrations:
We need several dependencies to be able to install PyTorch3D. They are listed and installed in the block below.
!pip install iopath # lightweight I/O abstraction library
!pip install fvcore # provides the most common and essential functionalityCode language: PHP (php)We will also need some dependencies for face and landmark detection. For face detection, we will use the MTCNN. So we need to install facenet_pytorch. For landmark detection, we will use Bulat Landmarks, which can be found inside the face_alignment library.
!pip install facenet_pytorch
!pip install face_alignmentAfter installing these dependencies we can move on. To install PyTorch3D we just run the code blocks below. Note that if you do not want to install PyTorch (you may have it already installed) depending on your torch and CUDA versions you may need to modify the wheel information in the URL.
!pip install torch==1.12.1+cu113 torchvision==0.13.1+cu113 torchaudio==0.12.1 --extra-index-url https://download.pytorch.org/whl/cu113
!pip install --no-index --no-cache-dir pytorch3d -f https://dl.fbaipublicfiles.com/pytorch3d/packaging/wheels/{version_str}/download.htmlCode language: JavaScript (javascript)Creating a 3DMM model from an image
Now, let us import all the needed dependencies and modules. Here, we will also import the PyTorch3D functions that we will be using.
from facenet_pytorch import MTCNN
import cv2
import face_alignment
import numpy as np
from core import get_recon_model
import os
import torch
import core.utils as utils
from tqdm import tqdm
import core.losses as losses
from scipy.io import loadmat
import torch.nn as nn
from pytorch3d.structures import Meshes
from pytorch3d.renderer import (
look_at_view_transform,
FoVPerspectiveCameras,
PointLights,
RasterizationSettings,
MeshRenderer,
MeshRasterizer,
SoftPhongShader,
TexturesVertex,
blending
)Code language: JavaScript (javascript)Now, brace yourselves because the next code block consists of over 10 hyperparameters. However, they are not that complex, with most paths and parameters for the model training and fitting.
We have also provided follow-up comments if you are interested in exploring them.
img_path = "/content/3DMM-Fitting-Pytorch/data/000033.jpg"
device = 'cuda' if torch.cuda.is_available() else 'cpu'
recon_model = "bfm09"
tar_size = 256 # size for rendering window. We use a square window
rf_lr = 1e-2 # learning rate for rigid fitting
first_rf_iters = 1000 # iteration number of rigid fitting for the first frame in video fitting.
lm_loss_w = 100 # weight for landmark loss
nrf_lr = 1e-2 # learning rate for non-rigid fitting
first_nrf_iters = 500 # iteration number of non-rigid fitting for the first frame in video fitting
id_reg_w = 1e-3 # weight for id coefficient regularizer
exp_reg_w = 0.8e-3 # weight for expression coefficient regularizer
tex_reg_w = 1.7e-6 # weight for texture coefficient regularizer
tex_w = 1 # weight for texture reflectance loss.
rgb_loss_w = 1.6 # weight for rgb loss
res_folder = "/content/"Code language: PHP (php)As we have our hyperparameters set up, we will load in the face and landmark detection algorithms. In order to detect faces in images, we will be using the MTCNN algorithm. For landmark detection, we will be using the Bulat landmark detection algorithm which can be found inside the face_alignment module. Below you can see how we loaded our face and landmark detection algorithms.
# init face detection and lms detection models
print('loading models')
mtcnn = MTCNN(device=device, select_largest=False)
fa = face_alignment.FaceAlignment(
face_alignment.LandmarksType._3D, flip_input=False) Code language: PHP (php)Now comes the interesting part. Defining the model. As every face model consists of parameters, this one is not any different. This face model consists of 257 parameters, and we are placing them all in a single vector. We can break this vector into the following parts:
- 80 for identity
- 64 for expression
- 80 for albedo/texture
- 27 for lighting
- 3 for rotation
- 3 for translation
Inside the “3DMM-Fitting-Pytorch” there is a folder named “core” and inside of it, we can find a BaseModel.py script. Inside this script is a BaseReconModel class. This class has some functionalities that we will use further in the code. So, we will create a new class BFM09ReconModel that will inherit all the functions inside the BaseReconModel. Some of the functions that we will be using are for example get_packed_tensors() which returns the 257-long vector of coefficients that our model has learned based on an image input.
from core.BaseModel import BaseReconModelCode language: JavaScript (javascript)class BFM09ReconModel(BaseReconModel):
def __init__(self, model_dict, **kargs):
super(BFM09ReconModel, self).__init__(**kargs)
self.skinmask = torch.tensor(model_dict['skinmask'], requires_grad=False, device=self.device)
self.kp_inds = torch.tensor(model_dict['keypoints']-1).squeeze().long().to(self.device)
self.meanshape = torch.tensor(model_dict['meanshape'],
dtype=torch.float32, requires_grad=False,
device=self.device)
self.idBase = torch.tensor(model_dict['idBase'],
dtype=torch.float32, requires_grad=False,
device=self.device)
self.expBase = torch.tensor(model_dict['exBase'],
dtype=torch.float32, requires_grad=False,
device=self.device)
self.meantex = torch.tensor(model_dict['meantex'],
dtype=torch.float32, requires_grad=False,
device=self.device)
self.texBase = torch.tensor(model_dict['texBase'],
dtype=torch.float32, requires_grad=False,
device=self.device)
self.tri = torch.tensor(model_dict['tri']-1,
dtype=torch.int64, requires_grad=False,
device=self.device)
self.point_buf = torch.tensor(model_dict['point_buf']-1,
dtype=torch.int64, requires_grad=False,
device=self.device)
# Gets particular landmark point
def get_lms(self, vs):
lms = vs[:, self.kp_inds, :]
return lms
# Splits the 257 long vector into different coefficient classes
# Identity, Expression, Texture, Rotation, Lighting, Translation
def split_coeffs(self, coeffs):
id_coeff = coeffs[:, :80] # identity(shape) coeff of dim 80
exp_coeff = coeffs[:, 80:144] # expression coeff of dim 64
tex_coeff = coeffs[:, 144:224] # texture(albedo) coeff of dim 80
# ruler angles(x,y,z) for rotation of dim 3
angles = coeffs[:, 224:227]
# lighting coeff for 3 channel SH function of dim 27
gamma = coeffs[:, 227:254]
translation = coeffs[:, 254:] # translation coeff of dim 3
return id_coeff, exp_coeff, tex_coeff, angles, gamma, translation
# Combines all the coefficients into a 257 long vector
def merge_coeffs(self, id_coeff, exp_coeff, tex_coeff, angles, gamma, translation):
coeffs = torch.cat([id_coeff, exp_coeff, tex_coeff,
angles, gamma, translation], dim=1)
return coeffs
# Forward function, used for training
# It is used for RIGID and NON RIGID fitting
# and for obtaining the final coefficients and mesh
def forward(self, coeffs, render=True):
batch_num = coeffs.shape[0]
id_coeff, exp_coeff, tex_coeff, angles, gamma, translation = self.split_coeffs(
coeffs)
vs = self.get_vs(id_coeff, exp_coeff)
rotation = self.compute_rotation_matrix(angles)
vs_t = self.rigid_transform(
vs, rotation, translation)
lms_t = self.get_lms(vs_t)
lms_proj = self.project_vs(lms_t)
lms_proj = torch.stack(
[lms_proj[:, :, 0], self.img_size-lms_proj[:, :, 1]], dim=2)
if render:
face_texture = self.get_color(tex_coeff)
face_norm = self.compute_norm(vs, self.tri, self.point_buf)
face_norm_r = face_norm.bmm(rotation)
face_color = self.add_illumination(
face_texture, face_norm_r, gamma)
face_color_tv = TexturesVertex(face_color)
mesh = Meshes(vs_t, self.tri.repeat(
batch_num, 1, 1), face_color_tv)
rendered_img = self.renderer(mesh)
rendered_img = torch.clamp(rendered_img, 0, 255)
return {'rendered_img': rendered_img,
'lms_proj': lms_proj,
'face_texture': face_texture,
'vs': vs_t,
'tri': self.tri,
'color': face_color}
else:
return {'lms_proj': lms_proj}
def get_vs(self, id_coeff, exp_coeff):
n_b = id_coeff.size(0)
face_shape = torch.einsum('ij,aj->ai', self.idBase, id_coeff) + \
torch.einsum('ij,aj->ai', self.expBase, exp_coeff) + self.meanshape
face_shape = face_shape.view(n_b, -1, 3)
face_shape = face_shape - \
self.meanshape.view(1, -1, 3).mean(dim=1, keepdim=True)
return face_shape
def get_color(self, tex_coeff):
n_b = tex_coeff.size(0)
face_texture = torch.einsum(
'ij,aj->ai', self.texBase, tex_coeff) + self.meantex
face_texture = face_texture.view(n_b, -1, 3)
return face_texture
def get_skinmask(self):
return self.skinmask
def init_coeff_dims(self):
self.id_dims = 80
self.tex_dims = 80
self.exp_dims = 64
Now that we have defined our model, we can create an object. We will load the previously created generic face model, BFM09_model_info.mat which is located inside the “3DMM-Fitting-Pytorch/BFM” folder. We will load it in using the function loadmat from scipy and create our recon_model.
model_path = 'BFM/BFM09_model_info.mat'
model_dict = loadmat(model_path)
recon_model = BFM09ReconModel(model_dict,
device=device,
batch_size=1,
img_size=tar_size)Code language: JavaScript (javascript)Next, we will load the image on which we want to detect our 3D face model. As we are loading our image using cv2, it is loaded in a BGR format, and we need to convert it into RGB.
print('Loading image')

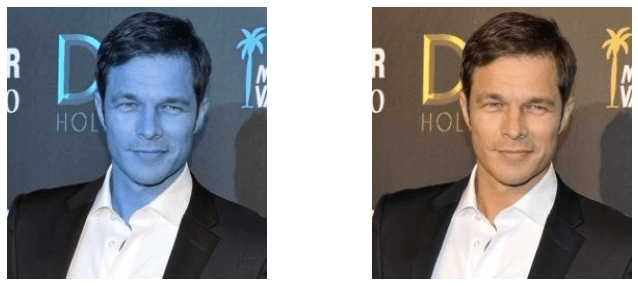

img_arr = cv2.imread(img_path)[:, :, ::-1] # Converting from BGR to RGB
orig_h, orig_w = img_arr.shape[:2]Code language: PHP (php)
Now, we will detect the face, crop the face and resize it to a dimension of 256 x 256. After the resize, we detect the face landmarks where we obtain 68 coordinates.
# Detect the face using MTCNN library
bboxes, probs = mtcnn.detect(img_arr)
if bboxes is None:
print('no face detected')
else:
bbox = utils.pad_bbox(bboxes[0], (orig_w, orig_h), 0.3)
face_w = bbox[2] - bbox[0]
face_h = bbox[3] - bbox[1]
assert face_w == face_h
print('Face is detected. l: %d, t: %d, r: %d, b: %d'
% (bbox[0], bbox[1], bbox[2], bbox[3]))
face_img = img_arr[bbox[1]:bbox[3], bbox[0]:bbox[2], :]
resized_face_img = cv2.resize(face_img, (tar_size, tar_size))
# lms stands short for landmarks
lms = fa.get_landmarks_from_image(resized_face_img)[0] # Detect landmarks
lms = lms[:, :2][None, ...] # Take only the X, Y and drop the third axis, Z (3D to 2D)
lms = torch.tensor(lms, dtype=torch.float32, device=device)
img_tensor = torch.tensor(
resized_face_img[None, ...], dtype=torch.float32, device=device)Code language: PHP (php)Here, we have drawn the landmarks on the face just for visualization purposes.
The next step is to perform a rigid transformation. This transformation aims to calculate the rotation and translation coefficients. It will take the landmarks that we just detected, and try and overlap them as best as it can over the generic face model. It will not deform the landmarks but just perform the basic translation and rotation. So, we expect to find 6 values modified in our coefficient vector as we have 3 values for rotation and 3 for rotation.
Our coefficients can be found inside the recon_model.get_packed_tensors() function. As you can see, we have a 257-long vector. In the beginning, this vector consists of only zeros, and after the rigid, we want to find some values modified.
recon_model.get_packed_tensors()Code language: CSS (css)tensor([[0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]],
device='cuda:0', grad_fn=<CatBackward0>)
print('start rigid fitting')
rigid_optimizer = torch.optim.Adam([recon_model.get_rot_tensor(),
recon_model.get_trans_tensor()],
lr=rf_lr)
lm_weights = utils.get_lm_weights(device)
for i in tqdm(range(first_rf_iters)):
rigid_optimizer.zero_grad()
pred_dict = recon_model(recon_model.get_packed_tensors(), render=False)
lm_loss_val = losses.lm_loss(
pred_dict['lms_proj'], lms, lm_weights, img_size=tar_size)
total_loss = lm_loss_w * lm_loss_val
total_loss.backward()
rigid_optimizer.step()
print('done rigid fitting. lm_loss: %f' %
lm_loss_val.detach().cpu().numpy())Code language: PHP (php)start rigid fittinga 100%|██████████| 1000/1000 [00:04<00:00, 221.74it/s]done rigid fitting. lm_loss: 0.000075
After the rigid transformation, we can print out our coefficients and find only 6 modified zeros. So, now, have some values. These are the rotation and translation coefficients and we printed them out below.
print(f"Rotation {recon_model.get_packed_tensors()[0, 224:227].cpu().detach().numpy()}")
print(f"Translation {recon_model.get_packed_tensors()[0, 254:257].cpu().detach().numpy()}")Code language: PHP (php)Rotation [ 0.22985226 -0.0046919 -0.04185119] Translation [ 0.01222747 -0.06925721 0.7250163 ]
After the rigid model fitting, we can move on and do the non-rigid fitting. This is a slightly more complex process because we are trying to calculate a lot more coefficients. The non-rigid transformation morphs or deforms the mask so that the landmark points fit the face. In the end, the result of this process is that we obtain the remaining coefficients that were not calculated in the rigid transformation.
print('start non-rigid fitting')
nonrigid_optimizer = torch.optim.Adam(
[recon_model.get_id_tensor(), recon_model.get_exp_tensor(),
recon_model.get_gamma_tensor(), recon_model.get_tex_tensor(),
recon_model.get_rot_tensor(), recon_model.get_trans_tensor()], lr=nrf_lr)
for i in tqdm(range(first_nrf_iters)):
nonrigid_optimizer.zero_grad()
pred_dict = recon_model(recon_model.get_packed_tensors(), render=True)
rendered_img = pred_dict['rendered_img']
lms_proj = pred_dict['lms_proj']
face_texture = pred_dict['face_texture']
mask = rendered_img[:, :, :, 3].detach()
photo_loss_val = losses.photo_loss(
rendered_img[:, :, :, :3], img_tensor, mask > 0)
lm_loss_val = losses.lm_loss(lms_proj, lms, lm_weights,
img_size=tar_size)
id_reg_loss = losses.get_l2(recon_model.get_id_tensor())
exp_reg_loss = losses.get_l2(recon_model.get_exp_tensor())
tex_reg_loss = losses.get_l2(recon_model.get_tex_tensor())
tex_loss_val = losses.reflectance_loss(
face_texture, recon_model.get_skinmask())
loss = lm_loss_val*lm_loss_w + \
id_reg_loss*id_reg_w + \
exp_reg_loss*exp_reg_w + \
tex_reg_loss*tex_reg_w + \
tex_loss_val*tex_w + \
photo_loss_val*rgb_loss_w
loss.backward()
nonrigid_optimizer.step()
loss_str = ''
loss_str += 'lm_loss: %f\t' % lm_loss_val.detach().cpu().numpy()
loss_str += 'photo_loss: %f\t' % photo_loss_val.detach().cpu().numpy()
loss_str += 'tex_loss: %f\t' % tex_loss_val.detach().cpu().numpy()
loss_str += 'id_reg_loss: %f\t' % id_reg_loss.detach().cpu().numpy()
loss_str += 'exp_reg_loss: %f\t' % exp_reg_loss.detach().cpu().numpy()
loss_str += 'tex_reg_loss: %f\t' % tex_reg_loss.detach().cpu().numpy()
print('done non rigid fitting.', loss_str)Code language: PHP (php)start non-rigid fitting 100%|██████████| 500/500 [00:33<00:00, 15.11it/s]done non rigid fitting. lm_loss: 0.000055 photo_loss: 0.055718 tex_loss: 0.008171 id_reg_loss: 4.150595 exp_reg_loss: 1.915752 tex_reg_loss: 115.029221
And finally, we will see the process of how to fit our mesh on the face. We will pass the coefficients that we have calculated. Also, we set the flag render=True to create/render our image. We will blend the original image with the mask image and obtain our composed image, or final image.
We will also save the coefficients we just calculated, we will save our image, and also the 3D mesh object. This file can also be opened with any 3D viewer and explored further from there as well. The final result will be saved in the directory that we defined in the beginning, res_folder. By default, this will be the folder /content/.
with torch.no_grad():
coeffs = recon_model.get_packed_tensors()
pred_dict = recon_model(coeffs, render=True)
rendered_img = pred_dict['rendered_img']
rendered_img = rendered_img.cpu().numpy().squeeze()
out_img = rendered_img[:, :, :3].astype(np.uint8)
out_mask = (rendered_img[:, :, 3] > 0).astype(np.uint8)
resized_out_img = cv2.resize(out_img, (face_w, face_h))
resized_mask = cv2.resize(
out_mask, (face_w, face_h), cv2.INTER_NEAREST)[..., None]
composed_img = img_arr.copy()
composed_face = composed_img[bbox[1]:bbox[3], bbox[0]:bbox[2], :] * \
(1 - resized_mask) + resized_out_img * resized_mask
composed_img[bbox[1]:bbox[3], bbox[0]:bbox[2], :] = composed_face
utils.mymkdirs(res_folder)
basename = os.path.basename(img_path)[:-4]
# save the composed image
out_composed_img_path = os.path.join(
res_folder, basename + '_composed_img.jpg')
cv2.imwrite(out_composed_img_path, composed_img[:, :, ::-1])
# save the coefficients
out_coeff_path = os.path.join(
res_folder, basename + '_coeffs.npy')
np.save(out_coeff_path,
coeffs.detach().cpu().numpy().squeeze())
# save the mesh into obj format
out_obj_path = os.path.join(
res_folder, basename+'_mesh.obj')
vs = pred_dict['vs'].cpu().numpy().squeeze()
tri = pred_dict['tri'].cpu().numpy().squeeze()
color = pred_dict['color'].cpu().numpy().squeeze()
utils.save_obj(out_obj_path, vs, tri+1, color)
print('composed image is saved at %s' % res_folder)Code language: PHP (php)After running the code above, you should see the results below. One should be the 3D face model over the face on the image and the second should be a 3D object of the mesh.
Summary
We’ve come to the end of yet another post of 3D faces. In this post, we have seen how 3D face databases are obtained and what is the data in those databases. Also, we have seen how we can create our own 3D face models from just a 2D input image.
